Flat recessed LED area light luminaire FQ 68-LED, angular, IP44, LED24 connection, CRi>90, 4W 3000K 270lm 110°, inox

Hera



We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

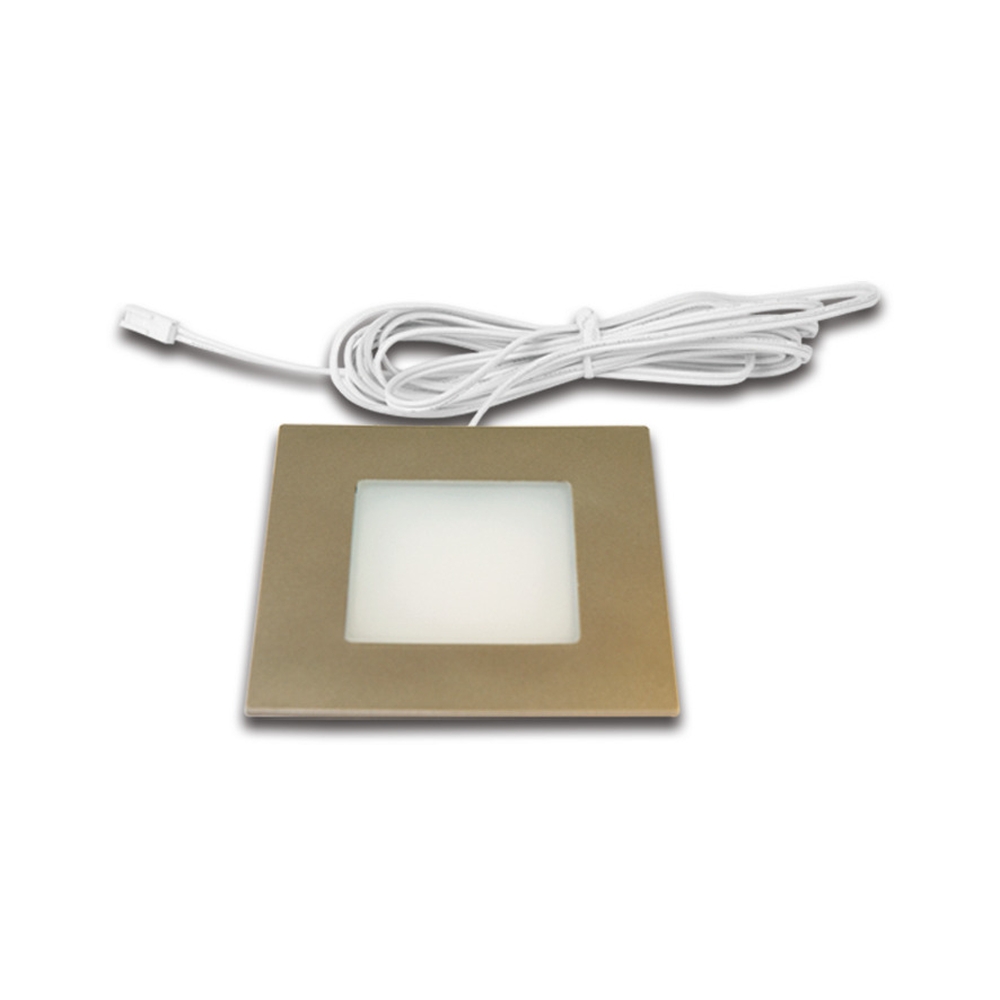

Flat LED Surface Light Recessed Luminaire FQ 68-LED

The square Flat LED Surface Light Recessed Luminaire FQ 68-LED is ideal for use in furniture and on walls indoors. With dimensions of 7.3 x 7.3 x 1.4 cm and a power consumption of 4W, it provides pleasant lighting in stainless steel and opal color tones.

Technical Details and Application

The surface light recessed luminaire operates at a voltage of 24V= and is dimmable with appropriate accessories. The color rendering index is 90-100Ra and the color rendering rating is 1A. The LED type is not replaceable, but the average lamp life is 54,000 hours.

Light Quality and Energy Efficiency

With a warm white light color and a luminous flux of 270lm, the recessed luminaire offers symmetrical light distribution with a light output of 68lm/W. The color temperature is 3000K and the energy efficiency class is G. The EPREL number is 925772.

Accessories and Additional Information

The accessories for the surface light recessed luminaire include the operating device, which must be purchased separately. Installation is done through recessed mounting and connecting to the mains via the LED-24 plug system. Additional information such as IP protection class, ambient temperature, and other technical details are also available.

Sustainability and Safety

The Flat LED Surface Light Recessed Luminaire FQ 68-LED complies with applicable standards regarding photobiological safety according to EN 62471 (RG0) and the glow wire test according to IEC 60695-2-11 is not applicable. Color consistency is ensured by SDCM3 and the operating device is voltage-controlled. An interchangeable LED type is not provided, but the recessed luminaire offers high energy efficiency and a long lifespan.

Article number:
HE-61001650208
Manufacturer:
Hera
Energy efficiency category:
G
EPREL No:
925772
Product type:
Einbauleuchte
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only
Power consumption:
4 W
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
warm white
Light emission:
symmetric
Light flux:
270 lm
Light yield:
68 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
54000 h
Colour rendering index:
90-100 Ra
1A
Colour:
opal
stainless steel
Material:
plastic
Fitting opening circle :
6,8 cm

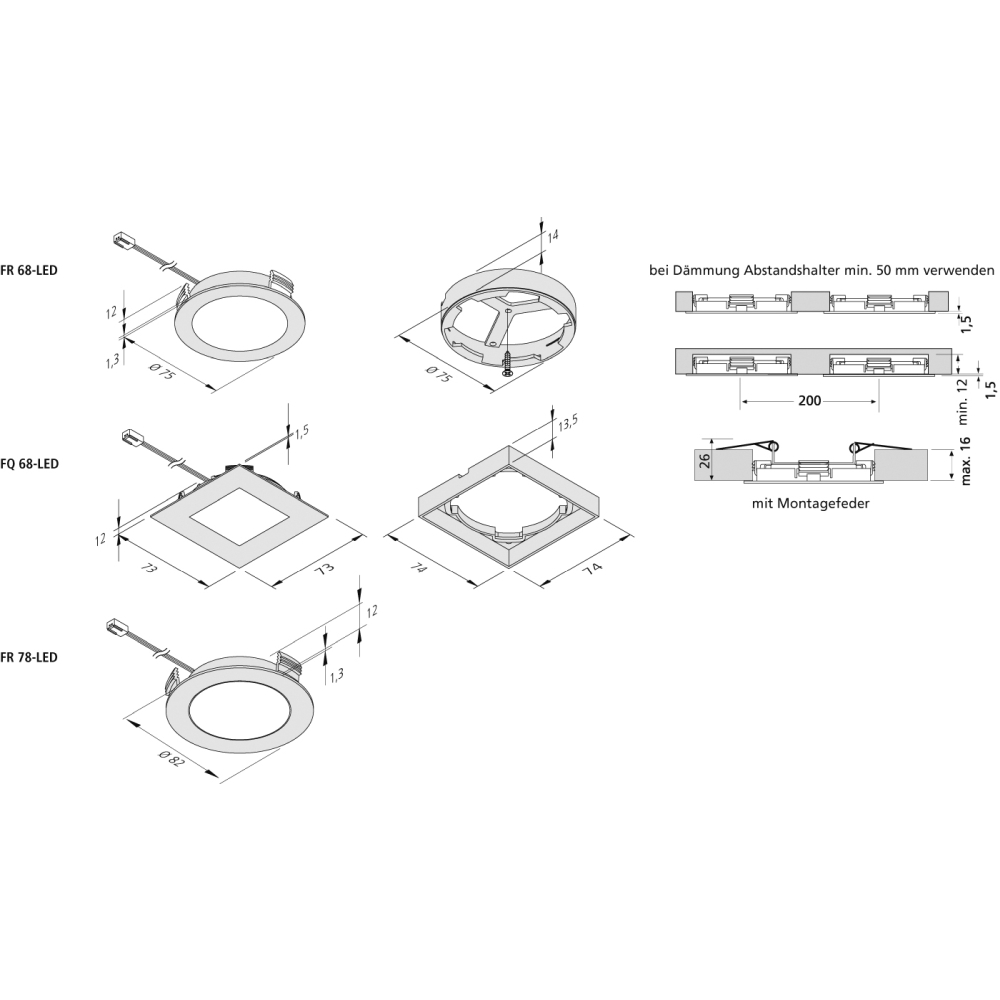

Dimension:
L∕ W∕ H: 7,3∕ 7,3∕ 1,4 cm
Plug type:
LED 24 plug-in system
Mounting:
recessed mounting
Field of application:
wall
furniture
Protection class:
3
IP-protection class:
20.00
Application area:
only suitable for indoor use
Additional information:
Transformer power: 21 VA
Accessories:
control gear excl
ambient temperature:
-5 - 35 °C
