3-phase X-connector D LINE/DALI DALI controllable, left-left-right, black

Accessories for 3-phase power track D LINE DALI - X-connector left-left-right-right

This X-connector from Deko-Light is specially designed for the 3-phase power track D LINE DALI. With the connections left-left-right-right, you can flexibly expand and adapt your lighting systems.

Technical data

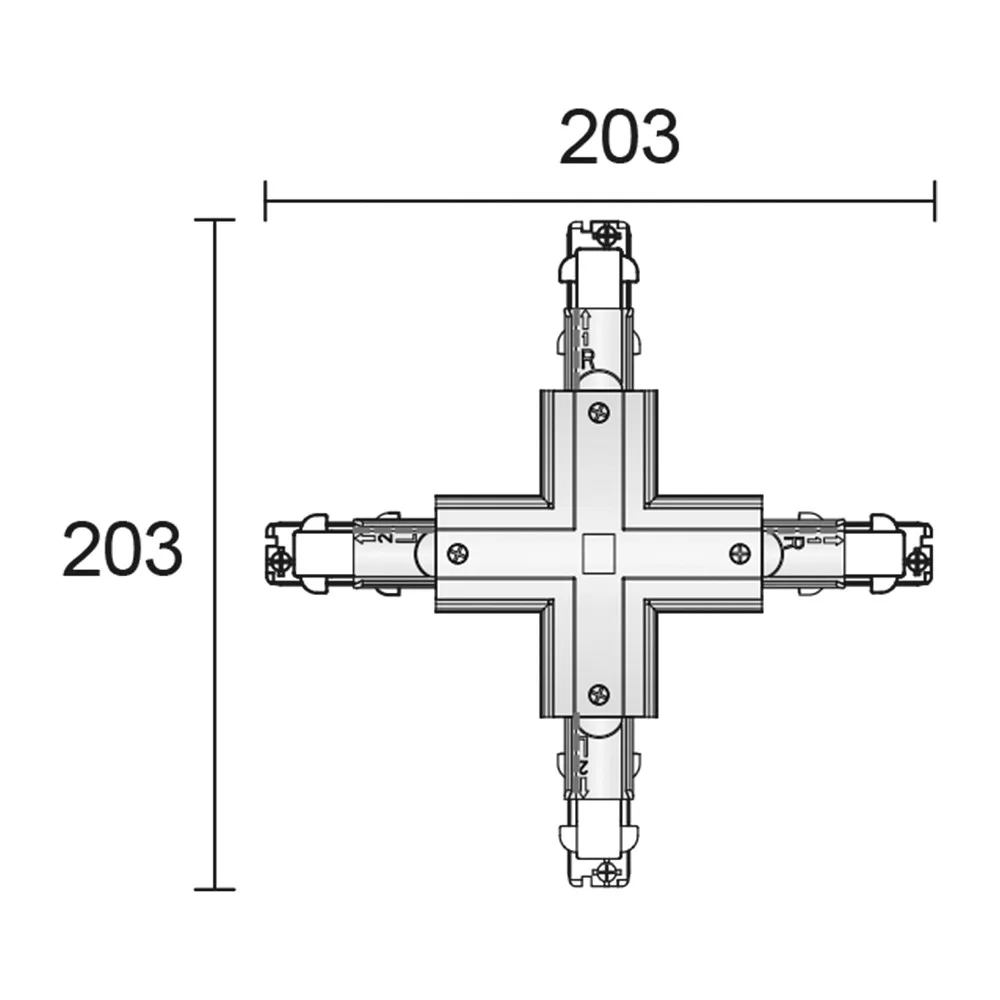

The operating voltage of the X-connector is 220-240V~, and it is dimmable. It is suitable for use on both the ceiling and the wall. With dimensions of 20.3 x 20.3 x 3.55 cm and a weight of only 0.265kg, it is easy to handle and install.

Material and protection class

The X-connector is made of sturdy plastic and is suitable for indoor use. It has protection class IP20 and is thus protected against dust and touch. The maximum current load is 48A, and installation is done via a bonded track system.

Further information

This X-connector supports various dimming protocols, including DALI 1.0 / DT6, DALI 1.0 / DT8, DALI 2.0 / DT6, and DALI 2.0 / DT8. With a mains frequency of 50-60Hz, it is suitable for use in various environments and offers a wide range of applications.

Conclusion

Overall, this X-connector is a versatile accessory for the 3-phase power track D LINE DALI from Deko-Light. With its high-quality construction, numerous application possibilities, and easy installation, it is a practical solution for the individual design of lighting systems indoors.
