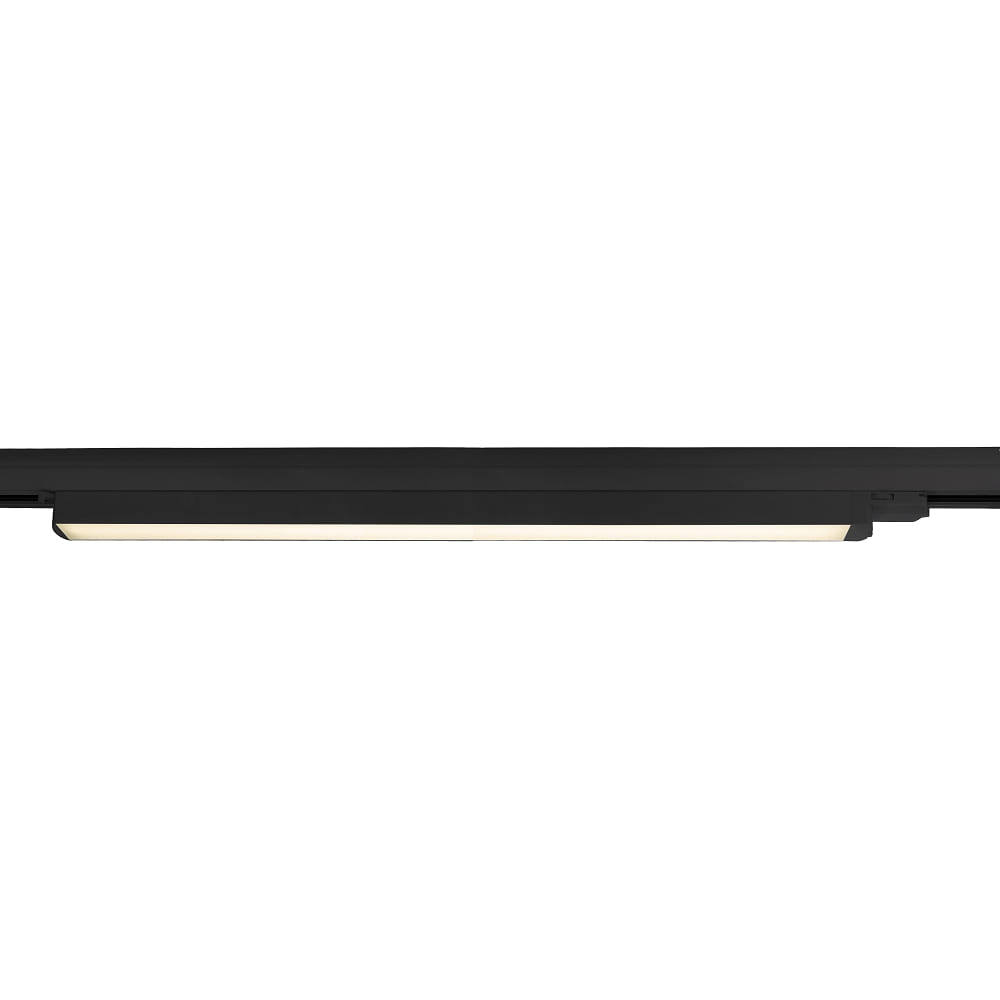

3-phase luminaire LINEAR 60 IP20, mat, graphite black

3-Phase LED luminaire LINEAR 60, 18W, 3000K, IP20

The 3-phase LED luminaire LINEAR 60 has a power of 18W and a color temperature of 3000K. With an IP protection rating of IP20, this luminaire is ideal for indoor use. The item number is D-707148.

Technical Details

The size of the luminaire is W∕ H∕ D: 6.2∕ 3.2∕ 68.7 cm. It has a beam angle of 110° and a luminous intensity of 793cd. The material is made of aluminum and polycarbonate (PC). The color rendering index is 80Ra and the color is matte graphite black.

Energy Efficiency and Consumption

The energy efficiency class of the luminaire is E. The energy consumption is 18kWh/1,000h. The power consumption is 18W and the LED light source is SMD LED 2835 type with a total of 60 LEDs. The light sources are included in the delivery.

Additional Information

The switching cycles are 50000 and the ambient temperature should be between -25 and 50°C. The power factor is 0.9 and the operating temperature is between -25 to 45 °C. The luminous flux at the end of the service life is 0.7lm and the color consistency is 6 SDCM.

Accessories and Application Area

The 3-phase luminaire LINEAR 60 is suitable for ceiling mounting and is delivered as 1 piece. It is not dimmable and cannot be used outside the specified temperature range. The light color is warm white with a luminous flux of 1950lm.
